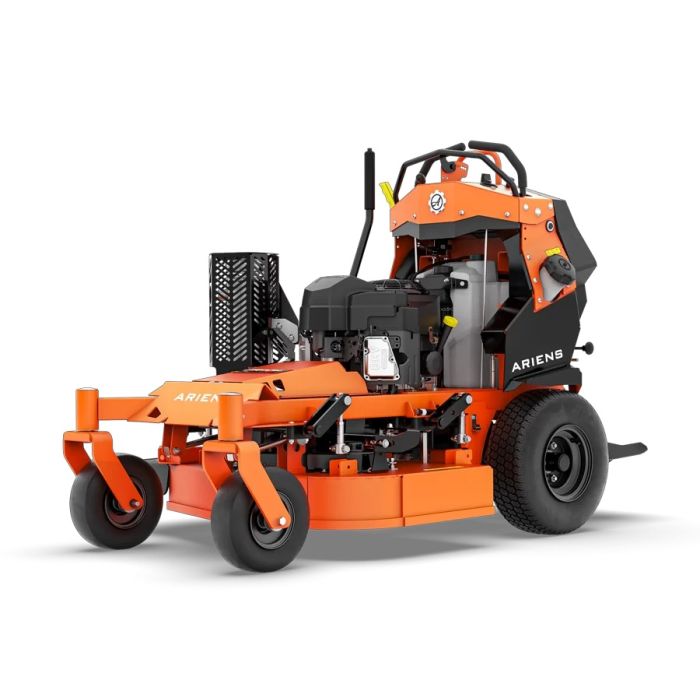

Ariens Arrow 32

Stand-on mowers are comfortable and fast, but particularly compact, agile and spacesaving. Your back and muscles will thank you for the upright working position.With its standard Kawasaki FS600 engine and 81 cm (32″) long mower deck, the ARROW 32 stand-on mower is the commercial choice for mowing in all areas.

Engine: Kawasaki^® FS600 V-Twin OHV
Cutting Width: 81 cm (32")
Drive System: Hydro-Gear^® ZT-3100 Transaxles
Limited Warranty Machine: 5 years / 1000 hours, no hour limit in the first 2 years

Buy in confidence from a Ariens authorised dealer and a family run business since 1958

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Description:

Stand-on mowers are comfortable and fast, but particularly compact, agile and spacesaving. Your back and muscles will thank you for the upright working position.

With its standard Kawasaki FS600 engine and 81 cm (32″) long mower deck, the ARROW 32 stand-on mower is the commercial choice for mowing in all areas.

Easy access and high manoeuvrability

Both the 81 cm (32″) and 91 cm (36″) mowing decks provide access to hard-to-reach mowing areas and make it easier to work in confined spaces. Mounting and dismounting takes just seconds.

Folding platform

The upright position of the driver on the platform offers the user a better view of the cutting deck than with a ride-on mower. Vibrations and impacts on the operator's back are reduced - a working day is less stressful. The platform's folding mechanism allows a quick transformation from a ‘stand-on’ to a ‘walk-behind’ mower, giving the user maximum versatility in narrow and low passages.

Adjustable speed control

Enables the driver to limit the maximum speed of the machine in confined working environments.

Operating elements

All functions are within easy reach and ergonomically controllable from the driver's position.

Cutting height adjustment

Less effort required to raise the mower deck, a combination of foot pedal and hand lever and a vertical pin system make it easier to adjust the cutting height.

Premium engine

A Kawasaki FS600 V-Twin premium engine provides power, performance and fuel efficiency.

Lower center of gravity

The geometry and weight distribution ensure greater stability on inclines and a more pleasant feeling of safety for the rider.

Specifications:

Model Number	994302
Engine	Kawasaki^® FS600 V-Twin OHV
Engine Displacement	603 cm³
Drive System	Hydro-Gear^® ZT-3100 Transaxles
Maximum engine Power	16.6 kW / 22.2 hp at 3,600 rpm.
Fuel Capacity	22.7 l
Max. Speed Forward / Backward	12.8 km/h / 4.8 km/h ( 8 mph / 3 mph
Mulching Kit	optional
Deck Material	4.6 mm sheet steel
Deck Construction	welded
Deck Lift System	foot pedal and hand lever
Number of blades	2
Spindle Material	Forged Aluminium
Spindles drive	V-belt
Spindle Clutch	Electric Ogura^®
Cutting Width	81 cm (32")
Cutting Hights	3.8 cm - 12.7 cm (1.5" - 5.0")
Cutting Positions	15
Front Wheels	11 x 4.00-5 semi-pneumatic
Rear Wheels (inch)	18 x 6.5 - 8
Driver Platform	Suspended, foldable
Weight	351 kg
Length	160 cm, driver plattform folded; 190 (74.5"), driver plattform unfolded
Width	114 cm w/ chute; 84 cm w/ mulch kit
Height	122 cm
Limited Warranty Machine	5 years / 1000 hours, no hour limit in the first 2 years

We offer full servicing and repairs for this machine, all done in-house by our skilled technicians to keep it running at its best.
